DL-SK-094-M-R-01 6 Button Switch For Power Recliner Or Lift Chair With USB

• Genuine DL-SK-094-M-R-01 switch: This is a genuine DL-SK-094-M-R-01 switch. If your current switch has the same model number, this product will be a perfect replacement.

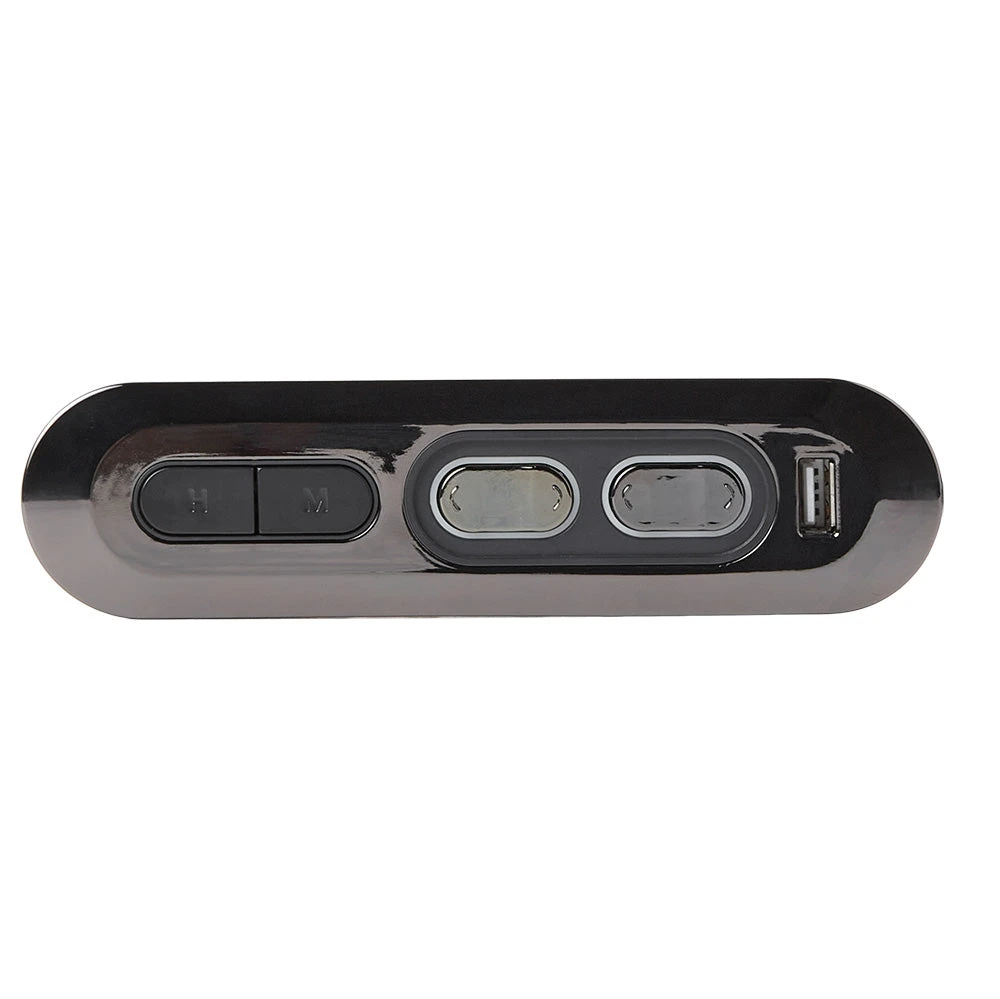

• 6 buttons: The switch has 6 buttons that control the up/down of the chair and backward/forward of the head cushion. The “M” button is the memory button, you can save you desired position, and access it in a click. The “H” button is the home button, you can reset the chair to home position by holding this button.
• This switch is suitable for power recliners/lift chairs that have two linear actuator motors.
• USB port: This switch is equipped with a USB charging port, which provides a 5V 2.1A output, you can use it to charge your mobile devices.

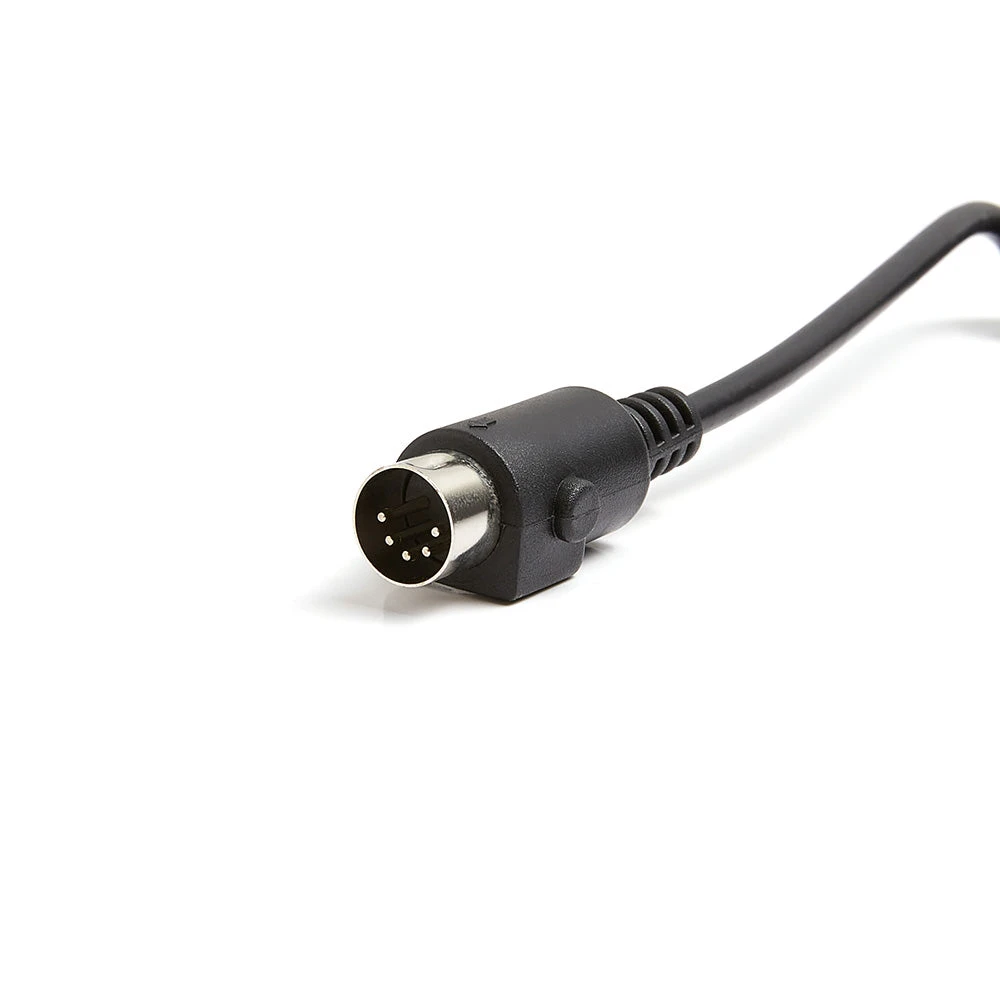

• 5-pin round plug: This switch uses an industry standard 5-pin round plug, it connects to the main motor.
• This switch is not universally compatible. Please only order it when the switch you are about to replace has the exact same model number.
• We can provide other DL-SK switches and remote controls, if you need a different model, please feel free to contact us for a quotation.

Package includes:

• 1* switch
• 1* plastic cover

Notes:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
