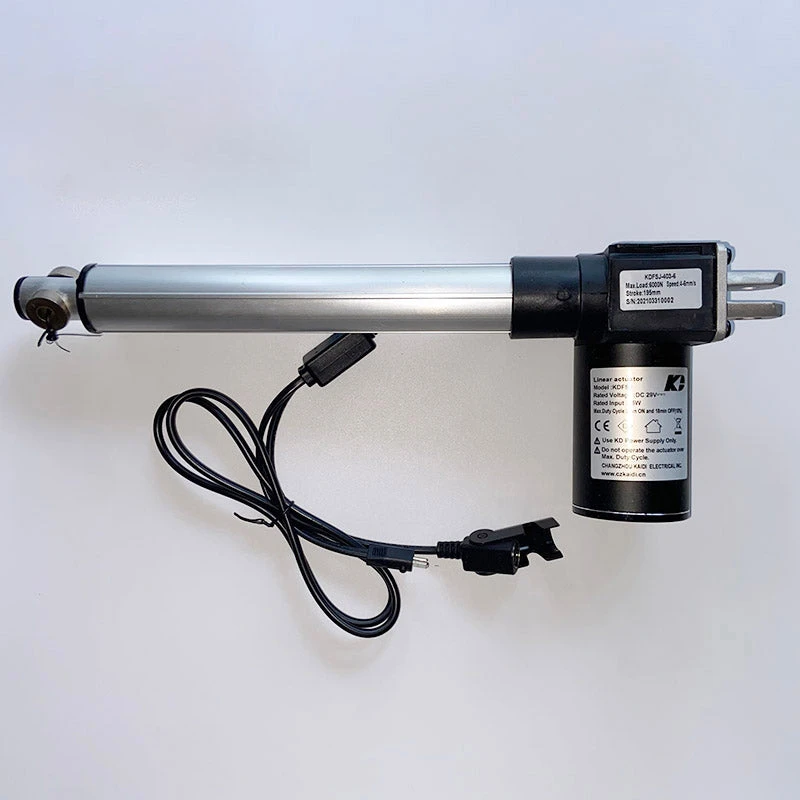

KDFSJ-403-6 Kaidi Linear Actuator For Power Recliner Lift Chairs

This motor – Kaidi Linear Actuator model KDFSJ-403-6 is for replacement purposes only, please only order it when your original linear actuator has the exact same model & specification.
We can also help you get other Kaidi Linear Actuators, if this one is not what you need, please take a picture of the linear Actuator’s label, and send it to our email ([email protected])

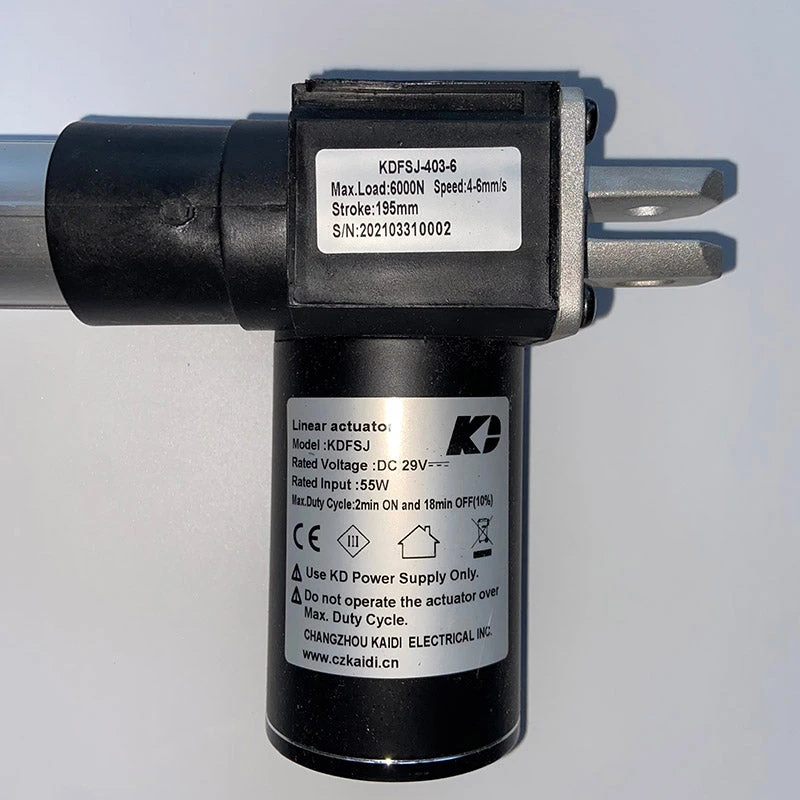

Technical data:

• Model: KDFSJ-403-6
• Stroke: 195mm/7.68inch
• Max. load: 6000N
• Speed: 4-6mm/s
• Rated Voltage: DC 29V
• Rated Input: 55W
• Max. Duty Cycle: 2 min ON and 18 min OFF (10%)

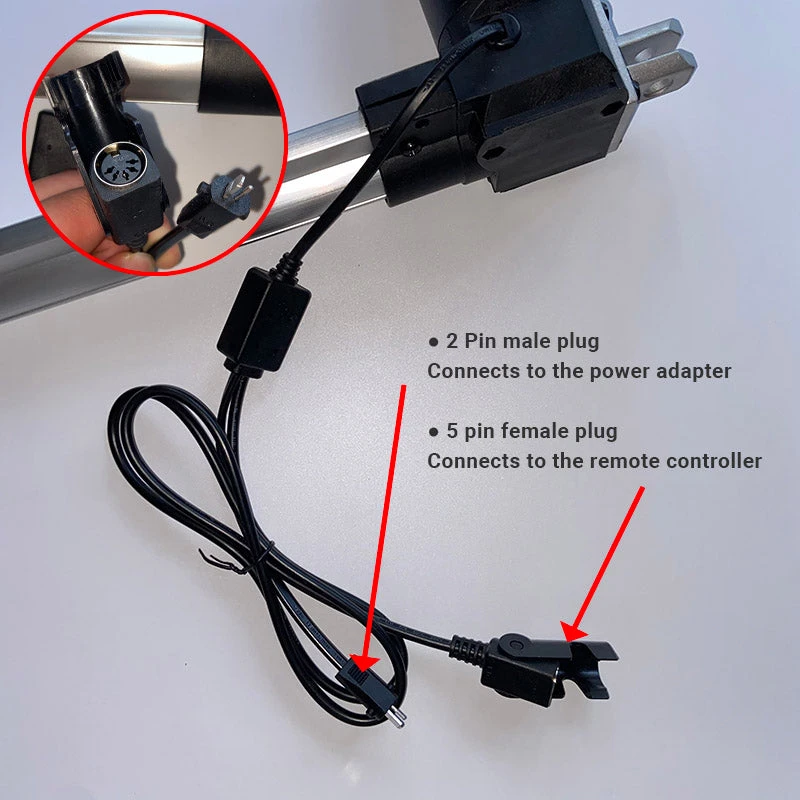

Connection:

• 2 pin flat & round power transformer connection
• 5 pin hand controller plug connection

Package includes:

• 1* Kaidi Linear Actuator (model number KDFSJ-403-6)

Attention Please

• Please only order this item when your original linear actuator motor has the exact same model number and specification, this item is very heavy, we DO NOT accept returns
• The item will be shipped through express (takes around 7-15 days), the shipping cost is 40USD
• The operation time is around 10 business days (ship out within 10 business days after you place the order)
