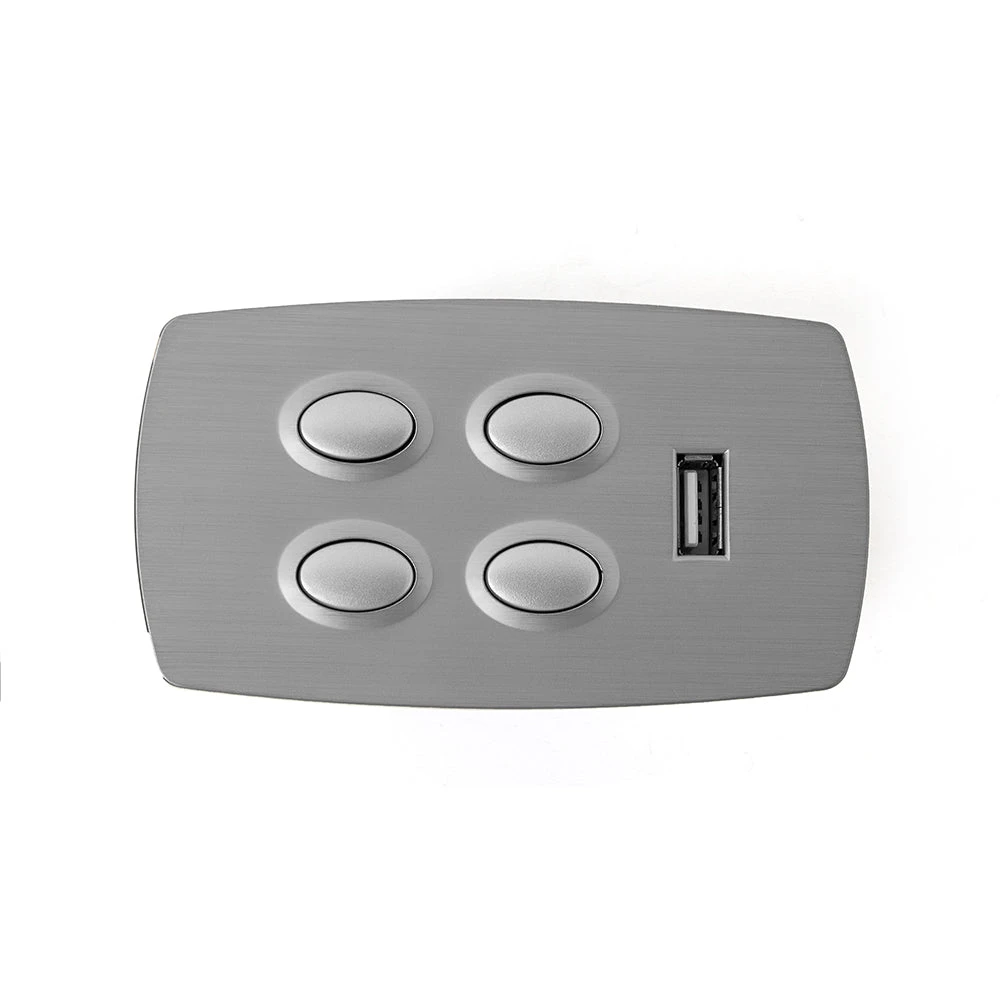

OKIN JLDK.17.05.31 4 Button Recliner Switch With USB

• This is the genuine JLDK.17.05.31 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.
• The switch has 4 buttons, suitable for recliners with 2 linear actuator motors
• With a USB charging port, you can use it to charge your mobile device

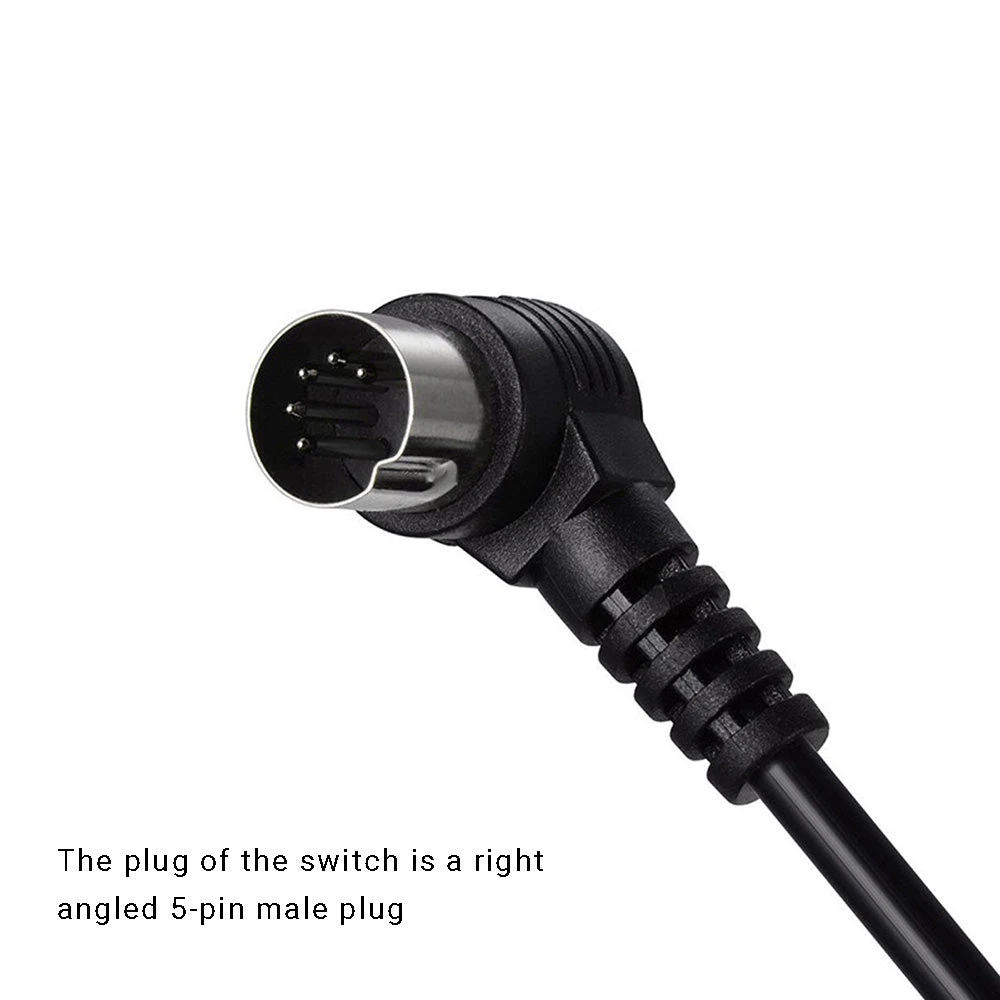

• The plug of the switch is a right-angled 5-pin plug

Specifications

• Part Number: JLDK-17
• Model number: JLDK.17.05.31
• Okin Refined Electric Technology Co., Ltd.
• Rated Voltage: 29V 2A
• USB port output: 5V 2A

Note:

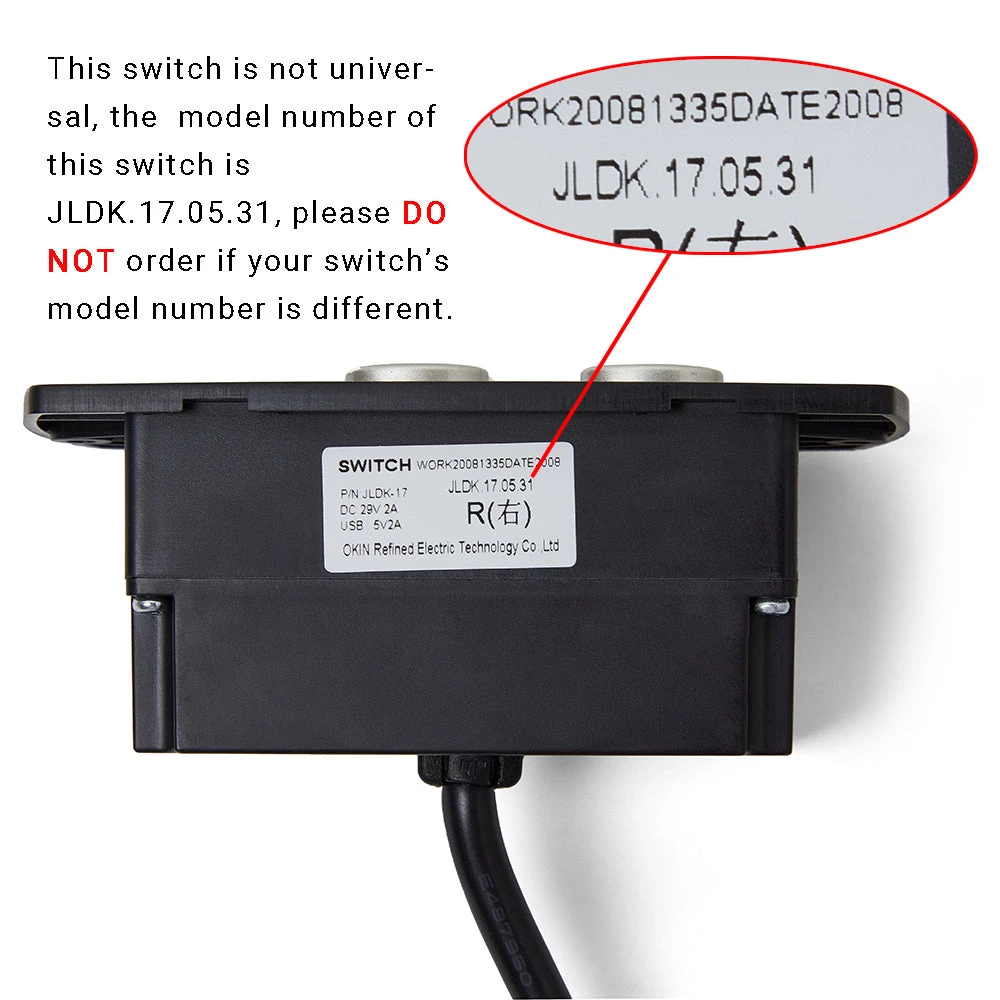

• The JLDK.17.05.31 is not a universal switch, please only order when your switch has the same model number.

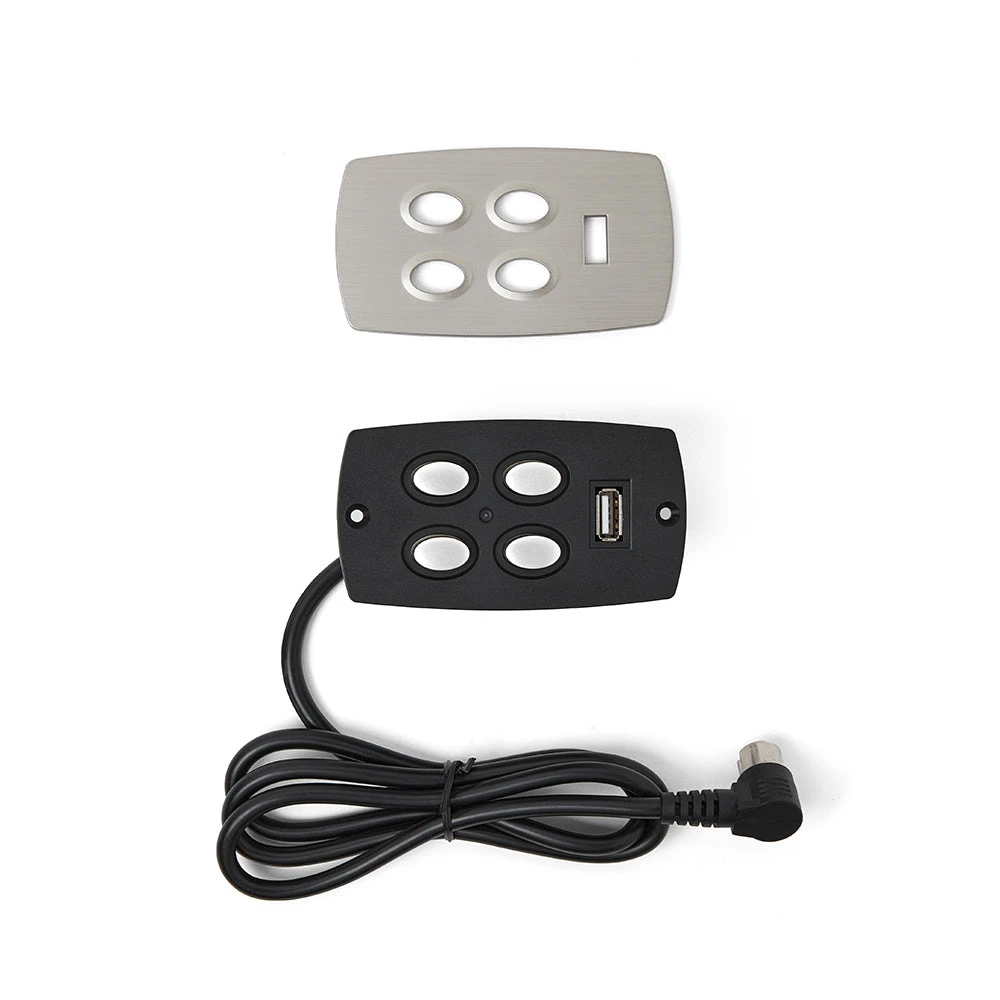

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
